Shark fin antennas have become a standard feature on modern vehicles, replacing traditional long rod or whip antennas. Their compact design, improved aerodynamics, and ability to support multiple wireless functions make them highly popular in the automotive and IoT ecosystem.
This article explains what a shark fin antenna is, how it works, its internal structure, advantages, disadvantages, and real-world applications, with a focus on technical clarity and SEO-friendly structure suitable for WordPress publishing.
What Is a Shark Fin Antenna?

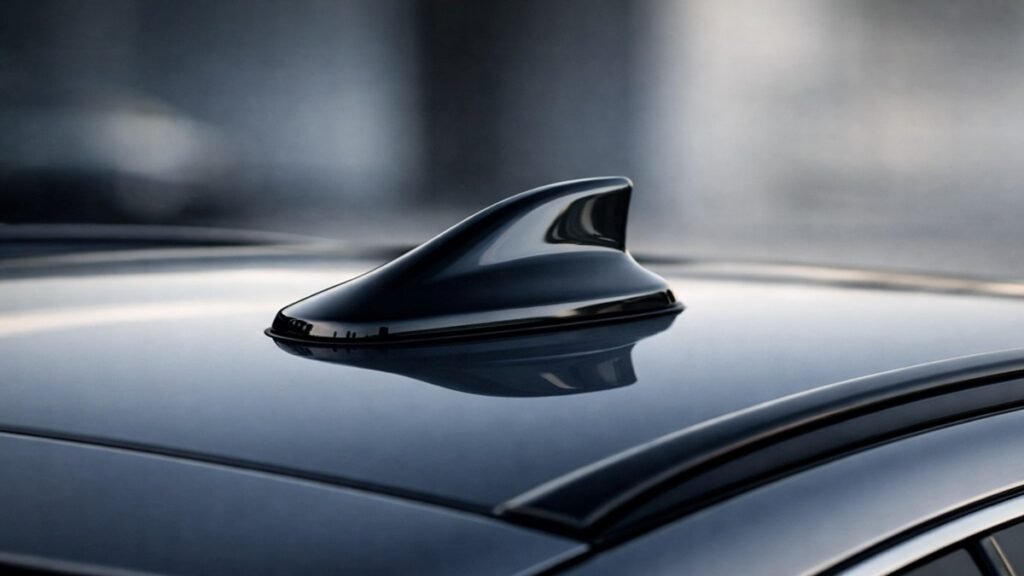

A shark fin antenna is a low-profile, fin-shaped antenna typically mounted on the roof of a vehicle. It gets its name from its resemblance to a shark’s dorsal fin. Unlike traditional antennas that usually support a single frequency, shark fin antennas are multi-band antennas capable of handling several wireless services simultaneously.
These antennas are commonly used for:
- FM/AM radio
- GPS navigation
- Cellular (4G/5G)
- Satellite radio
- Vehicle-to-everything (V2X) communication
Evolution from Traditional Antennas to Shark Fin Design
Older vehicles relied on metal whip antennas, which were:
- Physically fragile
- Aerodynamically inefficient
- Limited to one or two frequency bands
With the growth of connected cars, telematics, GPS, and infotainment systems, manufacturers needed a compact antenna that could support multiple radios without compromising performance or vehicle design. This led to the widespread adoption of shark fin antennas.
How Shark Fin Antennas Work
A shark fin antenna is not a single antenna but a housing that contains multiple antenna elements, each tuned to a specific frequency range.
Basic Working Principle
- Signal Reception/Transmission
Radio waves from satellites, cellular towers, or broadcast stations reach the antenna. - Frequency Separation
Inside the housing, different antenna elements resonate at different frequencies (FM, GPS, LTE, etc.). - Filtering and Amplification
Built-in low-noise amplifiers (LNAs) boost weak signals, especially for GPS and cellular bands. - Signal Routing
Signals are routed via coaxial cables to the infotainment system, navigation unit, or telematics control unit.
Internal Structure of a Shark Fin Antenna
A typical shark fin antenna consists of:
- Plastic aerodynamic housing (weatherproof and UV-resistant)
- Multiple antenna elements (patch, monopole, or PCB antennas)
- Ground plane (usually the vehicle roof)
- Low-noise amplifiers (LNA)
- Coaxial connectors and RF filters
Each antenna element is optimized to reduce interference and improve isolation between frequency bands.
Frequency Bands Supported by Shark Fin Antennas
Most modern shark fin antennas support:
- AM/FM Radio (0.5–108 MHz)
- GPS / GNSS (1.1–1.6 GHz)
- Cellular (2G / 4G LTE / 5G) (700 MHz – 3.8 GHz)
- Satellite Radio (S-band)
- Wi-Fi / Bluetooth (2.4 GHz / 5 GHz in advanced systems)
Advantages of Shark Fin Antennas
1. Improved Aerodynamics
The streamlined shape reduces air drag and wind noise compared to whip antennas.
2. Multi-Functionality
One compact unit replaces multiple antennas, simplifying vehicle design.
3. Better Signal Stability
Roof-mounted position provides:
- Clear line-of-sight
- Reduced signal shadowing
- Better omnidirectional performance
4. Enhanced Durability
No protruding metal parts, making them resistant to:
- Car washes
- Weather damage
- Accidental breakage
5. Modern Aesthetic Appeal
Complements the sleek design of modern vehicles.
Disadvantages of Shark Fin Antennas
Despite their benefits, shark fin antennas have some limitations:
- Higher cost compared to basic whip antennas
- Complex installation due to multiple RF connections
- Limited aftermarket compatibility if not tuned properly
- Performance depends on vehicle ground plane design
Applications of Shark Fin Antennas
Automotive Industry
- Passenger cars
- Electric vehicles (EVs)
- Autonomous vehicles
Connected & Smart Vehicles
- Real-time navigation
- OTA software updates
- Vehicle tracking and telematics
IoT and Fleet Management
- GPS tracking systems
- Cellular data communication
- Remote diagnostics
Defense and Specialized Vehicles
- Encrypted communication
- Multi-band radio systems
Shark Fin Antenna vs Traditional Whip Antenna
| Feature | Shark Fin Antenna | Whip Antenna |
|---|---|---|
| Design | Compact & aerodynamic | Long & protruding |
| Bands Supported | Multiple | Usually single |
| Durability | High | Moderate |
| Aesthetics | Modern | Basic |
| Cost | Higher | Lower |
Installation and Placement Considerations
For best performance:
- Mount at the center of the vehicle roof
- Ensure proper ground plane connection
- Use shielded coaxial cables
- Avoid nearby high-current wiring to reduce EMI
Poor placement can significantly reduce GPS and cellular performance.
Future of Shark Fin Antennas
With the rise of:
- 5G-connected vehicles
- V2X communication
- Autonomous driving systems
Shark fin antennas are evolving into smart antenna modules with beamforming, MIMO support, and integrated RF processing, making them a critical component of next-generation mobility.
Conclusion
Shark fin antennas are a perfect blend of engineering efficiency, aesthetics, and multi-band communication capability. Their ability to support modern wireless technologies while maintaining a compact and aerodynamic profile makes them indispensable in today’s vehicles and connected systems.
As automotive and IoT technologies advance, shark fin antennas will continue to play a vital role in ensuring reliable and high-speed wireless connectivity.
